Control Panels or CPs are integrally illuminated light plates that makeup aircraft flight control systems. Each CP is designed to serve a particular function and built to house components at the Control Panel Assembly (CPA) level. Designed, built, tested and qualified in accordance with MIL DTL 7788, DO-160 and / or customer (MIL/Comm Aero) specifications.
AeroPanel employs a controlled laser etching process that produces precisely defined dials and panels with outstanding clarity, durability, color range, delineation and balanced illumination. The process has these advantages over engraving or photo-etching:
AeroPanel’s Electroluminescent Panels offer high-visibility displays using cutting-edge electroluminescent technology. These panels are ideal for environments requiring clear, bright visuals with low power consumption. They are designed for durability and efficiency, suitable for both commercial and military applications.

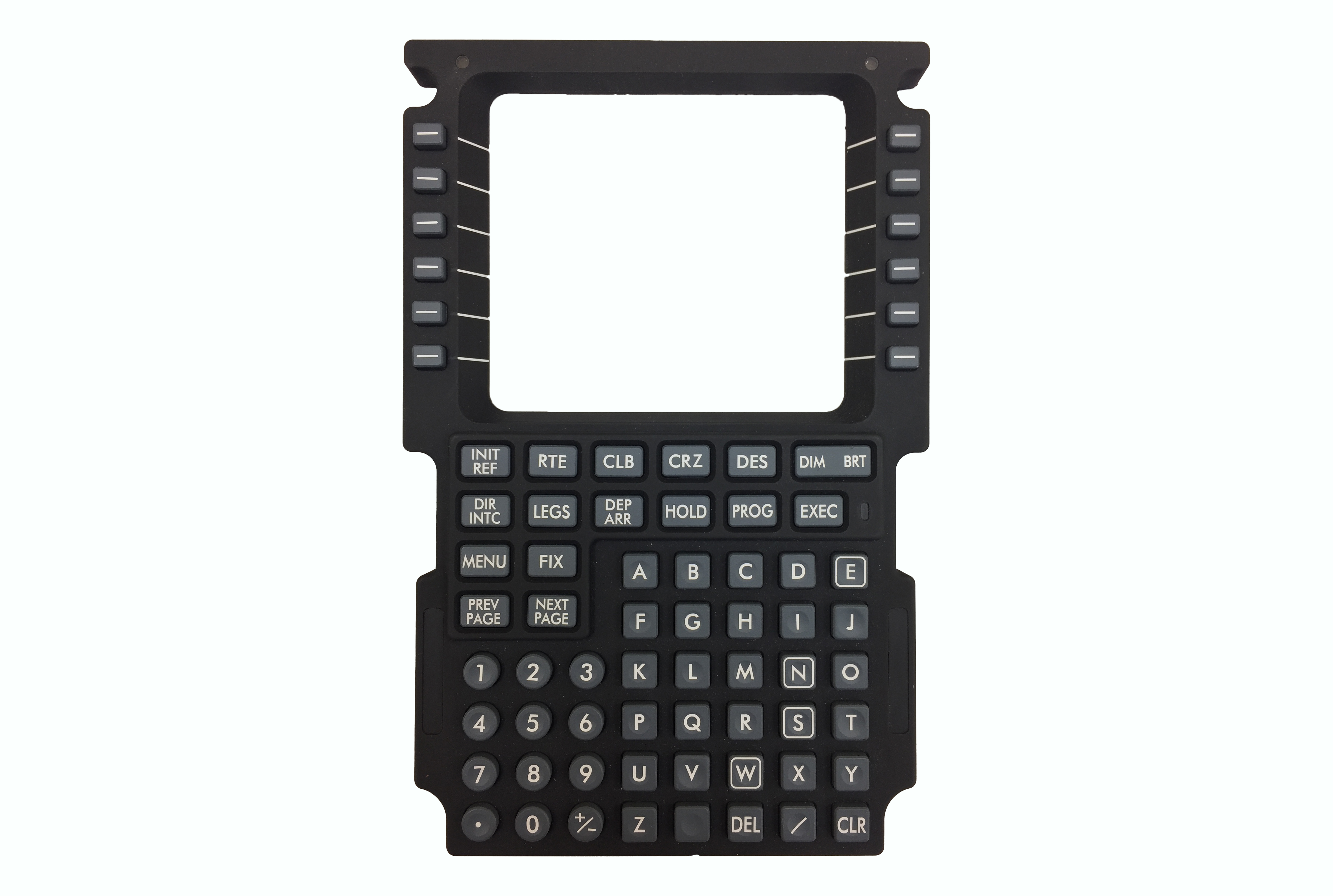

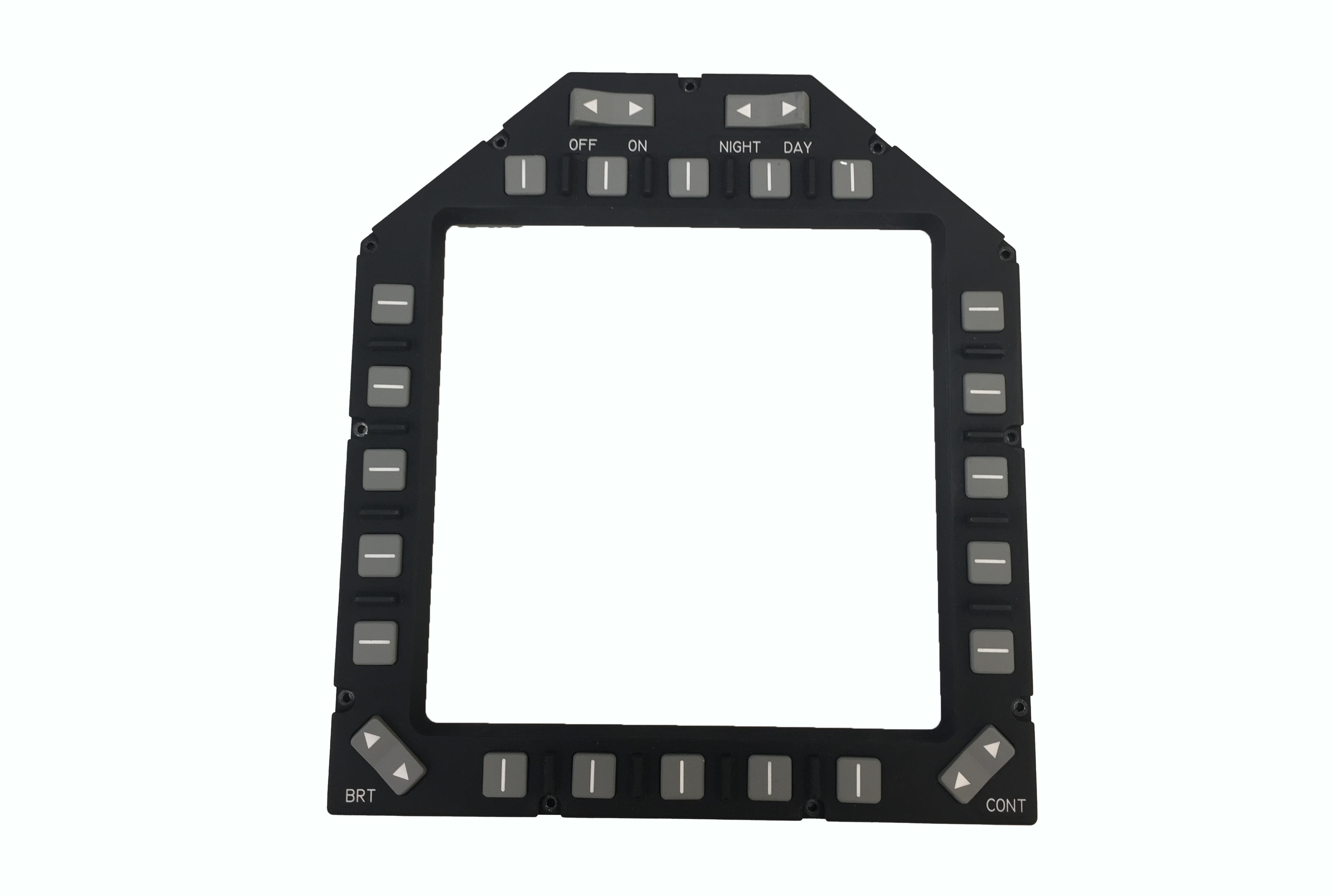

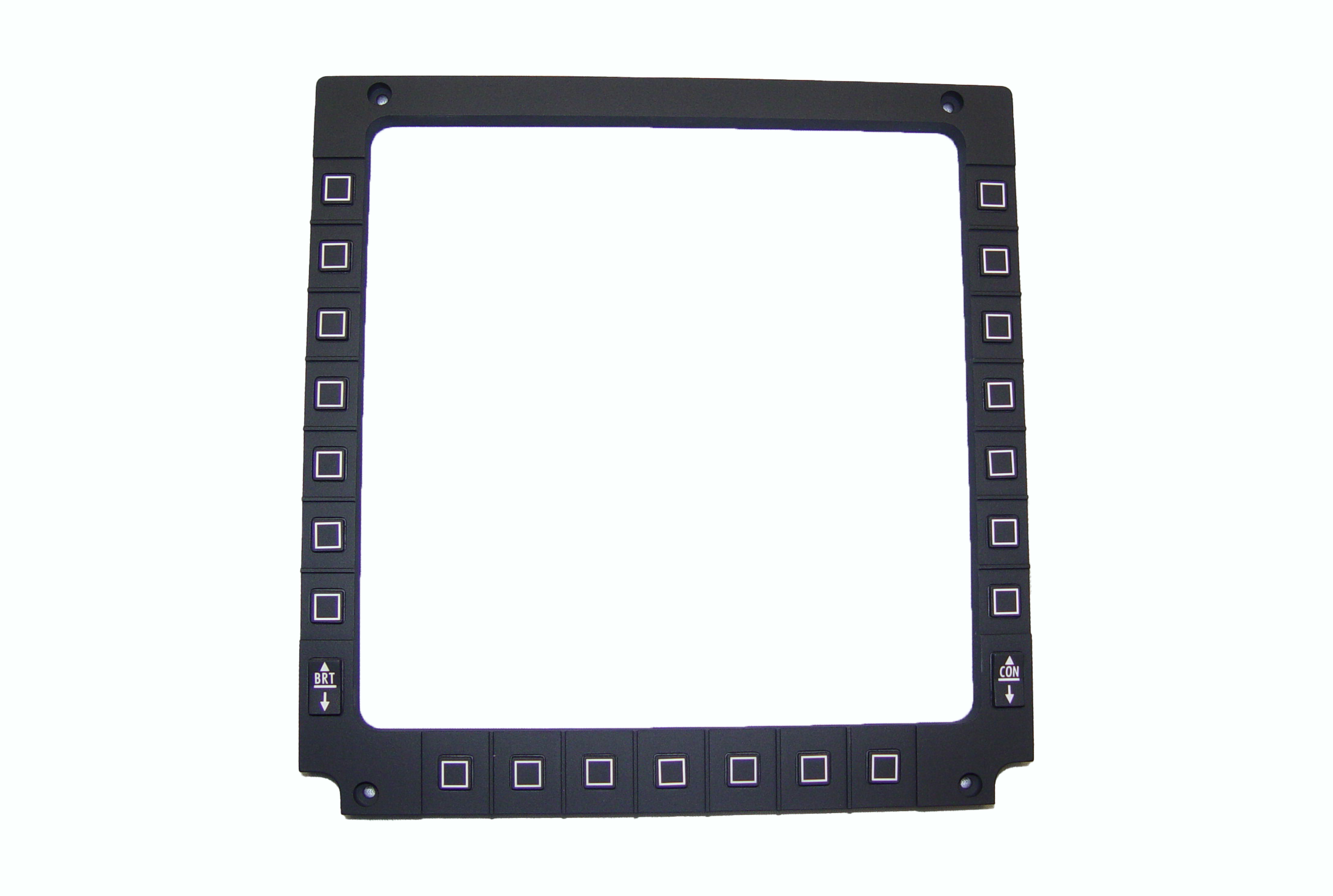

Integrated Switch Panels or ISPs are essentially Control Panel Assemblies (CPAs) in bezel or keyboard forms that incorporate the use of tactile switch buttons. ISPs are human-machine-interface flight deck products used by pilots to enter and check data. ISPs are designed, built and verified to meet customer specified geometry, layout, photometric performance, key actuation characteristics, power input requirements and mechanical and electrical bonding interfaces. ISPs may contain: integrated annunciators on the panel or on the button keys; ambient light sensors and integrated alphanumeric displays.

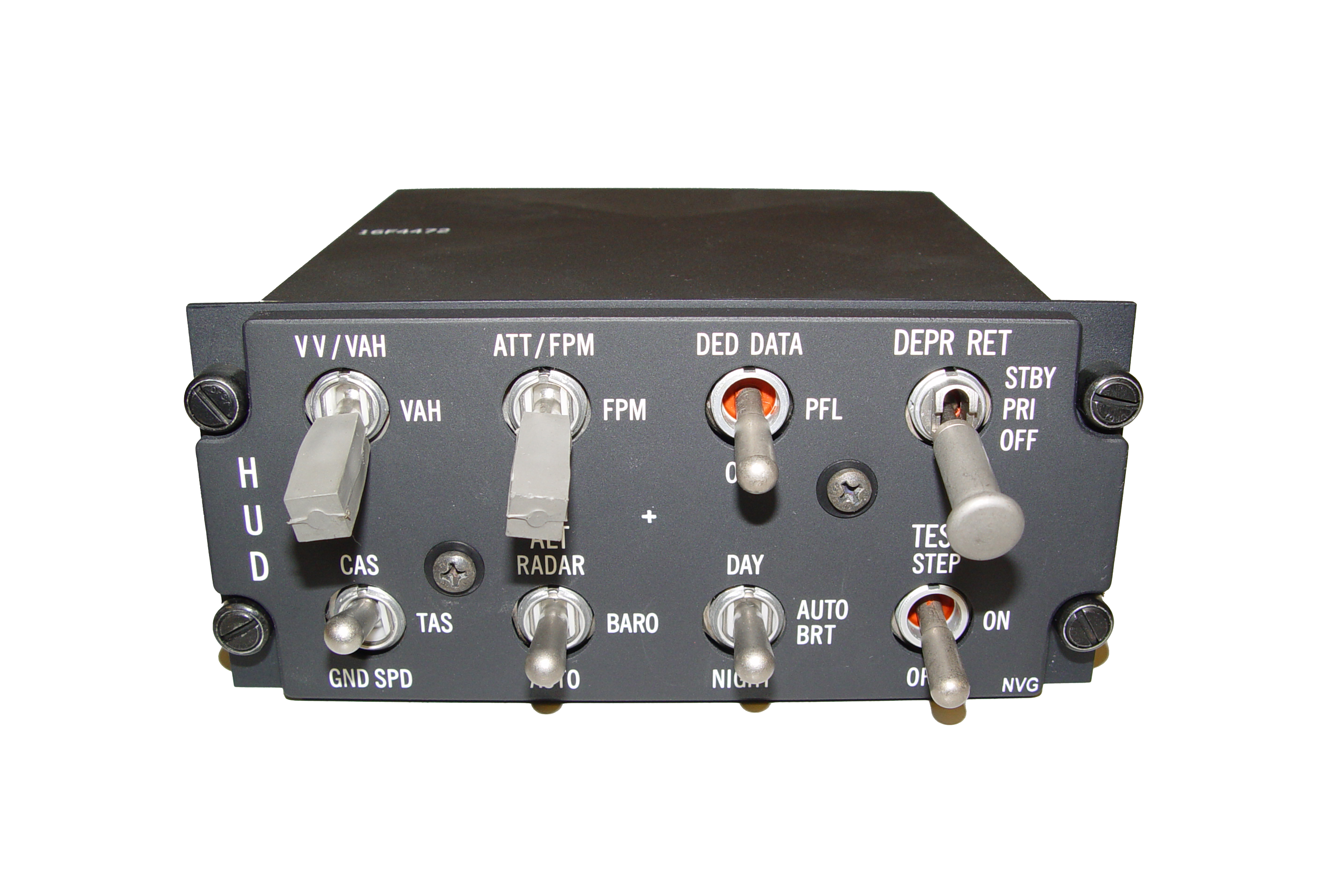

Control Panel Assemblies (CPAs) incorporate Control Panels (CPs) with functioning hardware to produce units that act and operate to a customer’s needs. Designed, built, tested and qualified in accordance with MIL DTL 7788, DO-160 and / or customer (MIL/Comm Aero) specifications. Solder workmanship is performed in compliance to IPC J STD 001. Solder and assembly acceptance is certified to IPC A 610. Wire and harness acceptance is certified to IPC A 620.
